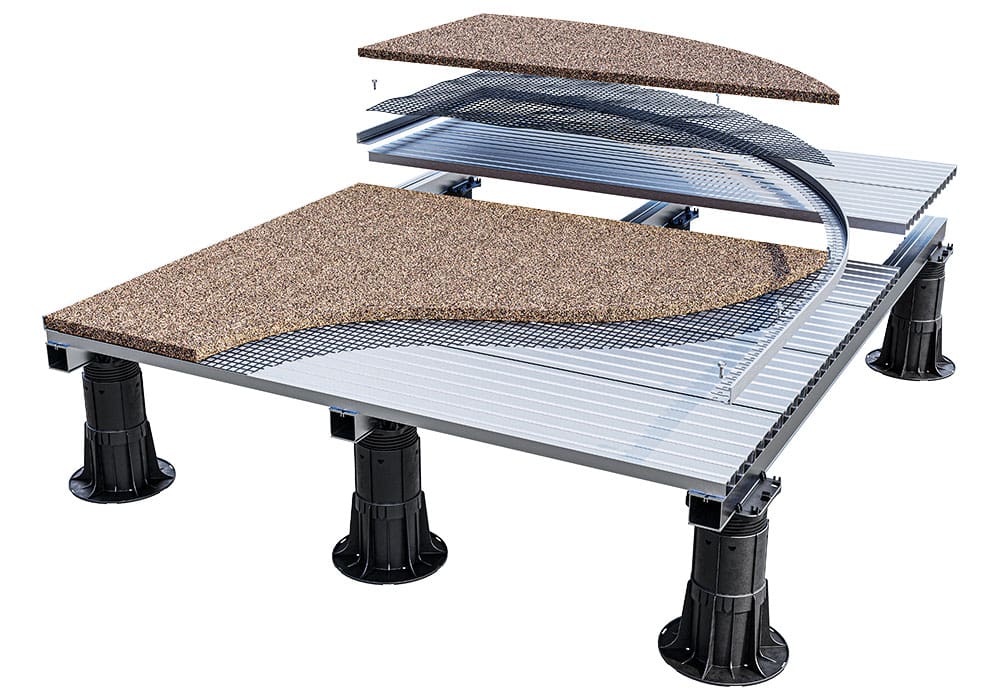

System overview
PDF 4.20 MB
From our socials
Check out our LinkedIn“The TerraSmart® Resin Bound Gravel System is perfectly suited to a roof terrace for many reasons firstly drainage…It also requires minimal maintenance… this raised system also significantly reduces weight and reduces load on the overall building”
Technical Information
| Reaction to Fire (to EN13501-5:2018) | BROOF(t4) |
|---|---|
| System overall height range | 95-1155mm as standard (including Resin Bound Gravel surface) |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 50-60kg/m2 |
| Wind uplift restraint available | N/A |
| Warranty | 10 years* |
*when used as part of a complete RYNO system

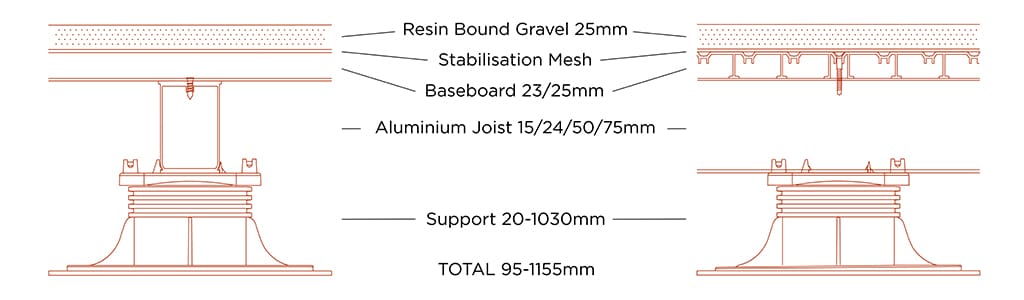

System height build up
Downloads
Install guide
PDF 1.06 MB
O&M Manual
PDF 0.28 MB
Technical drawings
(.dwg & .pdf)
ZIP 2.58 MB
Slip resistance test reports
BS7976
PDF 0.60 MB
BROOF(t4) test report
BS EN 13501-5
PDF 2.37 MB
Reaction to fire classification report
BS EN 13501-5:2016
PDF 0.25 MB
