System Overview
PDF 1.42 MB
Seeing is believing
Use our interactive slider below to see the substructure and all our finishes in two different environments
Long-press on the slider to enter full-screen mode
Double click on the slider to enter full-screen mode
Technical Information
| Reaction to fire (to EN13501-1:2018) | A1 |
|---|---|
| System overall height range | 45mm to 1206mm as standard, custom heights available (incl. decking) |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 55-65kg/m2 |
| Wind uplift restraint available | Yes |
| Warranty | 30 years* |
| Design Life | 60 years* |
*Valid when used as part of a complete RYNO® system

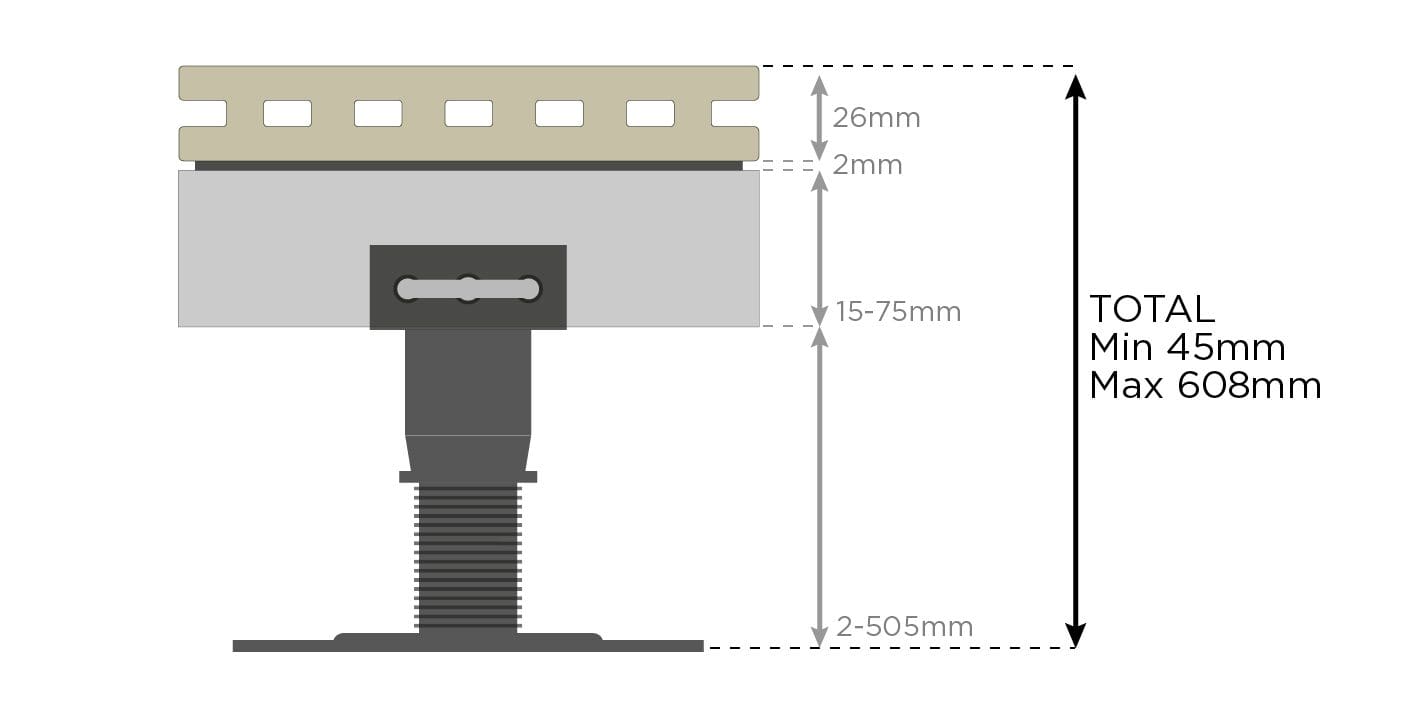

System Height Build Up
Watch the install guide
Downloads
Install guide
PDF 0.57 MB
Datasheet
PDF 0.66 MB
Vitrified Composite® Decking Boards
O&M Manual
PDF 0.25 MB
Vitrified Composite® Decking Boards
Slip resistance test reports – BS7976
ZIP 8.80 MB
Modulus of rupture test report – BS EN ISO
PDF 0.12 MB
Cyclic Wind Load Testing report by Lucideon
PDF 6.39 MB
CAD drawings
ZIP 6.42 MB
The art of roof terraces
View more roof
terrace systems
We bring deep industry experience and a problem-solving mindset, offering clarity, insight and practical advice at every stage.
Integrated roof terrace systems designed for compliance, compatibility and ease of installation. From paving, decking and surfacing, to planters and balustrades – all you need for the perfect roof space.
Frequently asked questions
What is vitrified composite decking?
Vitrified Composite® decking is a unique and innovative combination of technologies and techniques. While composite refers to products made from several materials, vitrification is the process of transforming a material into a glass or glass-like material through rapid heating and cooling.
Vitrified Composite® decking incorporates both of these terms. It is a composite because it is manufactured from clay and feldspar. It is vitrified because these materials go through a firing process that alters their chemical bonds and changes their properties.
The result is a decking solution that benefits from a remarkably realistic wood-like finish and an array of performance-related properties that ensure the material better meets the needs of specifiers and architects in particular. See a guide to vitrified composite decking here.
How does vitrification work?
Vitrification is most associated with ceramics. It is the process of heating the clay into a liquid state and then rapidly cooling it. This turns some of the clay into glass and changes the material properties. For instance, vitrification typically results in a material that is less porous and benefits from improved water resistance.
