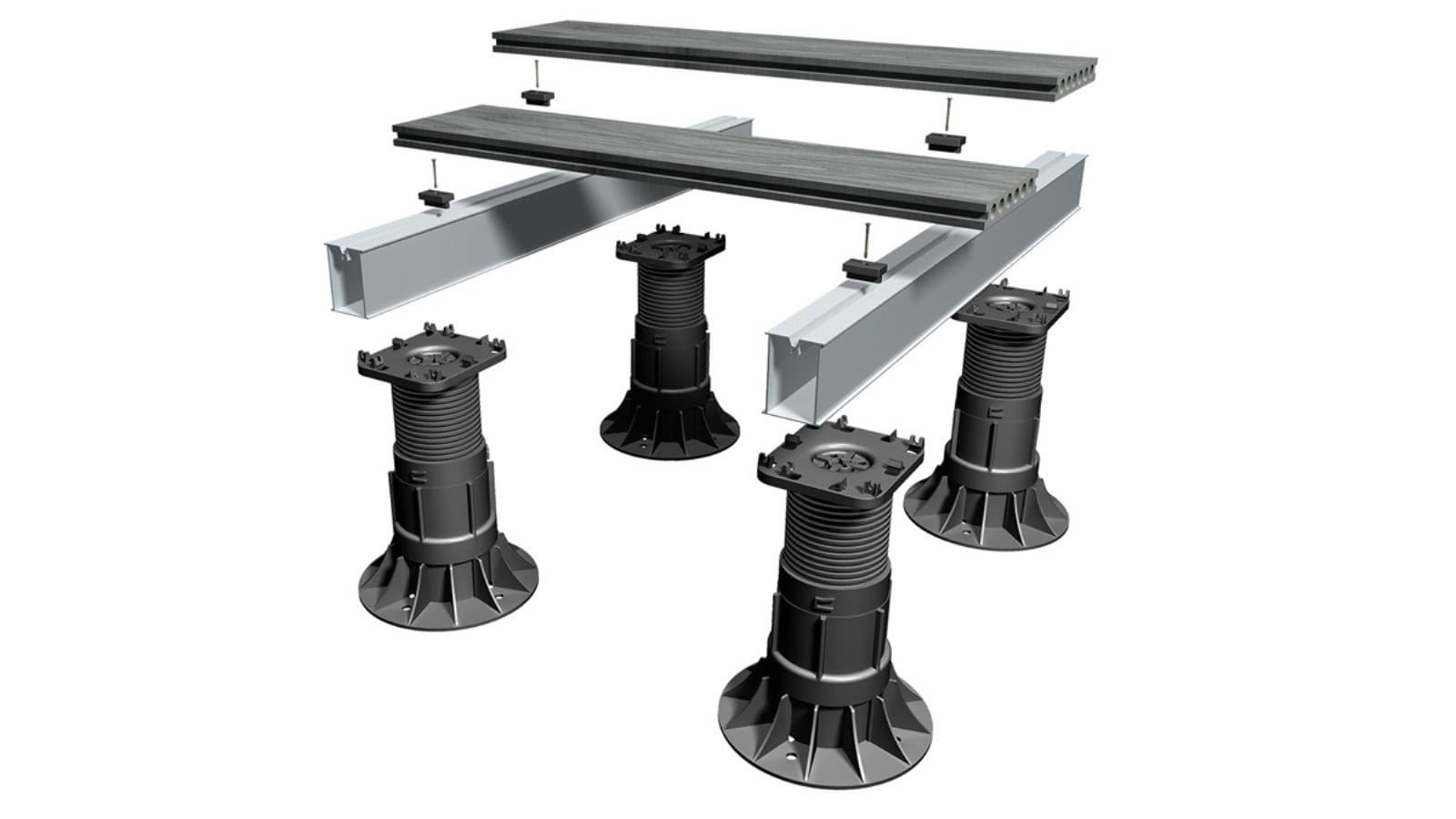

System Overview – TerraSmart Composite
PDF 2.52 MB
Technical Information
| Reaction to fire (to EN13501-1:2018) | Euroclass B and C options available |
|---|---|
| System overall height range | 47mm to 1130mm as standard, custom heights available (incl. decking) |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 20-30kg/m2 |
| Wind uplift restraint available | Yes |
| Warranty | 10 years* |
*Valid when used as part of a complete RYNO® system.

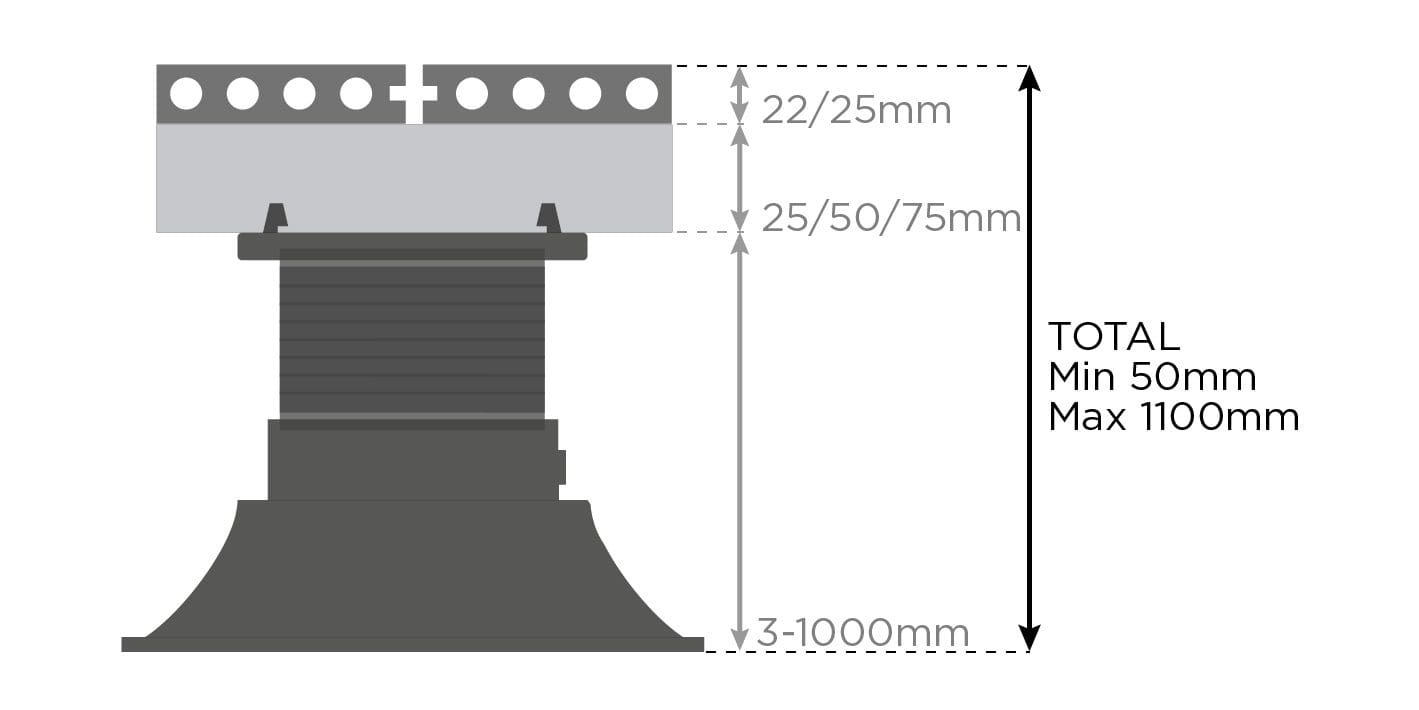

System Height Build Up
Smaller solutions are available – contact us for more information
