System Overview
PDF 7.21 MB
System variants

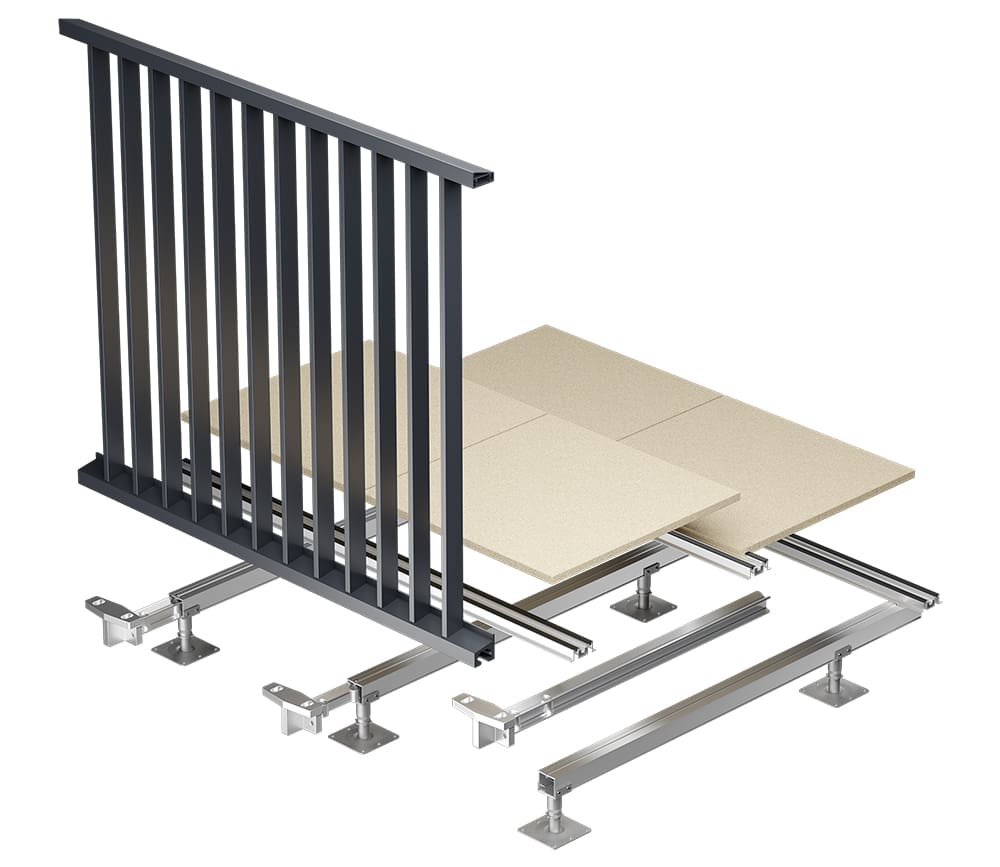

TerraSmart Rail Fix

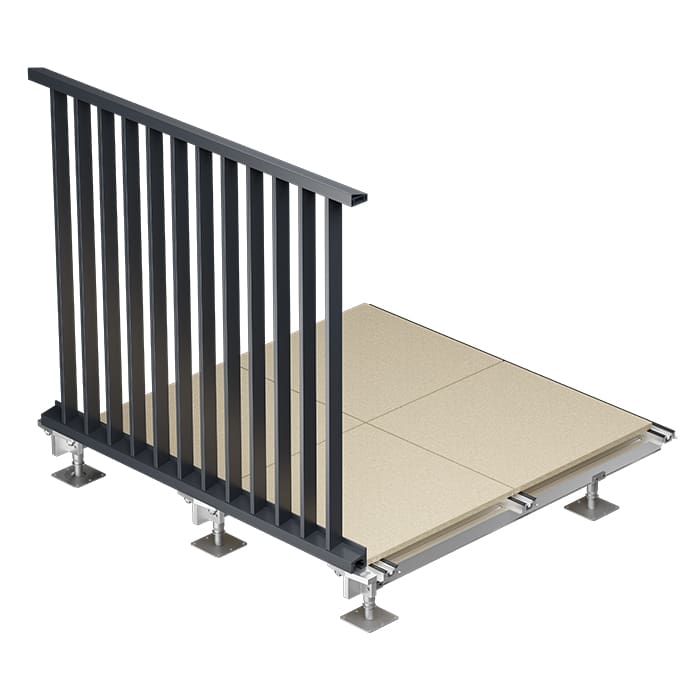

TerraSmart Rail-Fix enables LinearTrack balustrades to be fixed directly into the TerraSmart rail structure using the BaseLink connector, delivering a secure, engineered solution with zero waterproofing penetrations. It provides full line-load performance, coordinated detailing, and a clean, integrated terrace finish.
- Zero waterproofing penetrations via BaseLink fixing
- Direct structural connection to TerraSmart rails
- Delivers full, compliant horizontal line-load performance
Upstand Fix

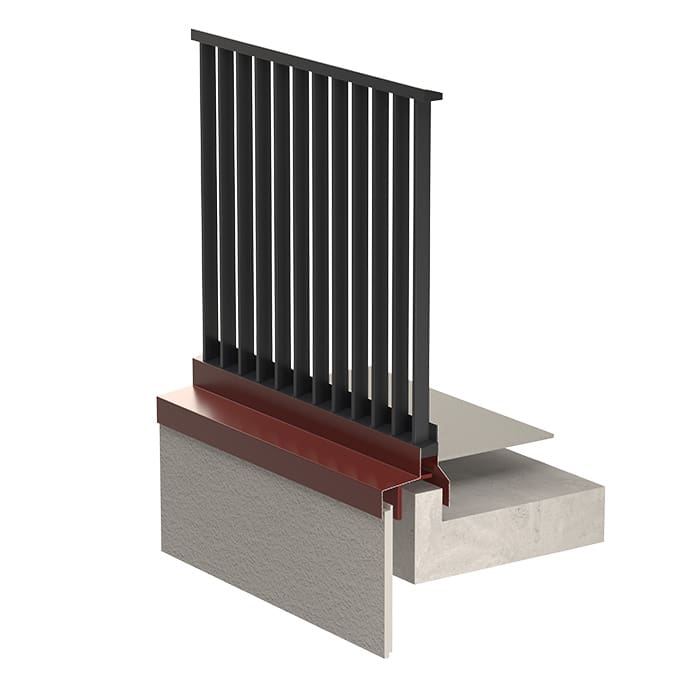

The Upstand Fix variant is for applications where the balustrade is securely anchored to a concrete upstand, ensuring a stable and durable connection.
Top Fixed to Concrete

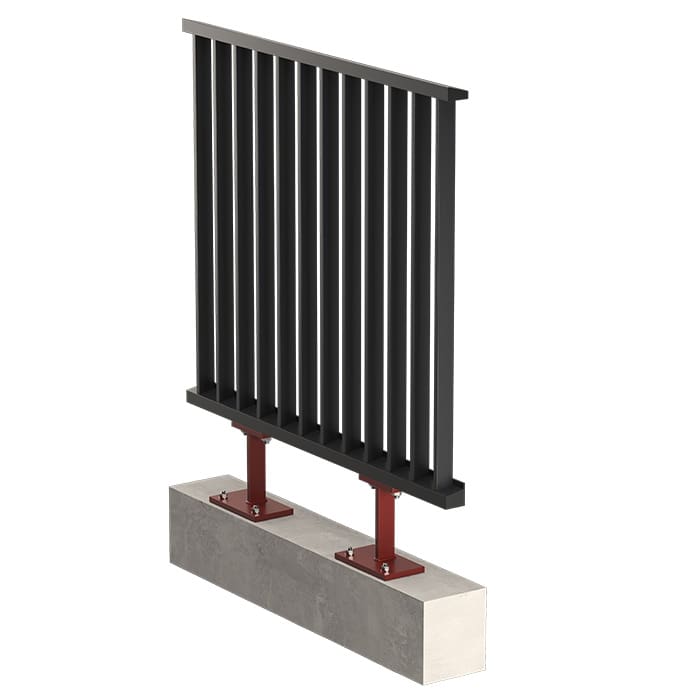

The Top Fix to Concrete variant is for applications where the balustrade is securely anchored down to the building’s concrete frame, ensuring a stable and durable connection.
Top Fixed to Steel
The Top Fix to Steel variant is for applications where the balustrade is securely fixed down to a steel PFC section, ensuring a stable and durable connection.
Parapet Fix

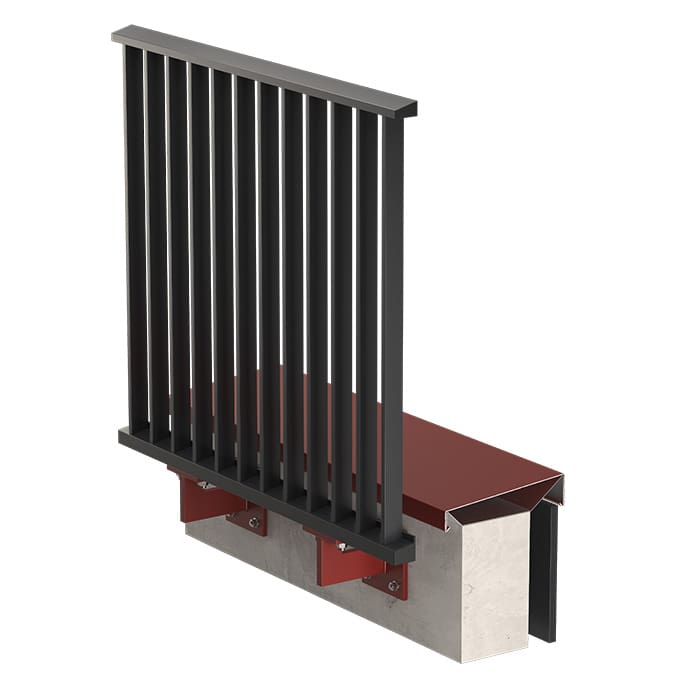

The Parapet Face Fix variant is for applications where the balustrade is securely anchored to a concrete parapet, ensuring a stable and durable connection.
Technical information
| Horizontal Line Load | ≤ 1.5kN |
|---|---|
| Weight | <20kg per l/m |
| Reaction to Fire (to EN13501-1:2018) | A2-s1, dO |
| Design compliance | Compliant with: BS EN 1090-2 EXC 2 BS EN ISO 15609 BS 8579 |
| Material | Superior strength aluminium – 6005A |
| Coating | Qualicoat |
